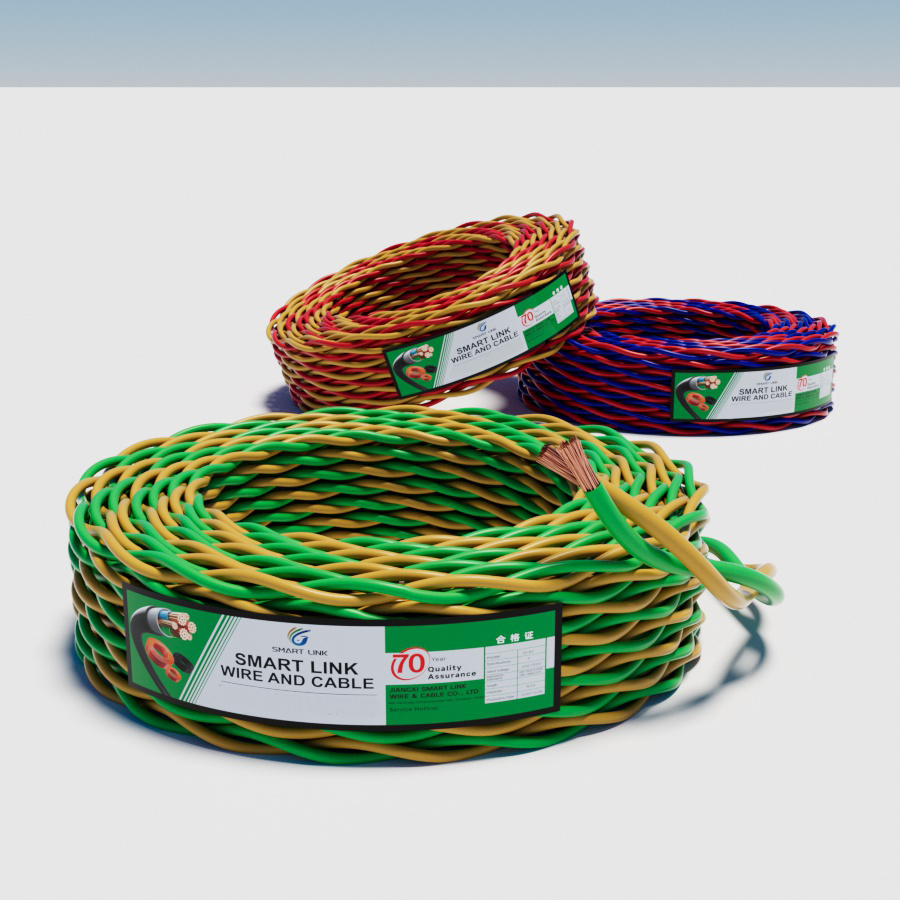

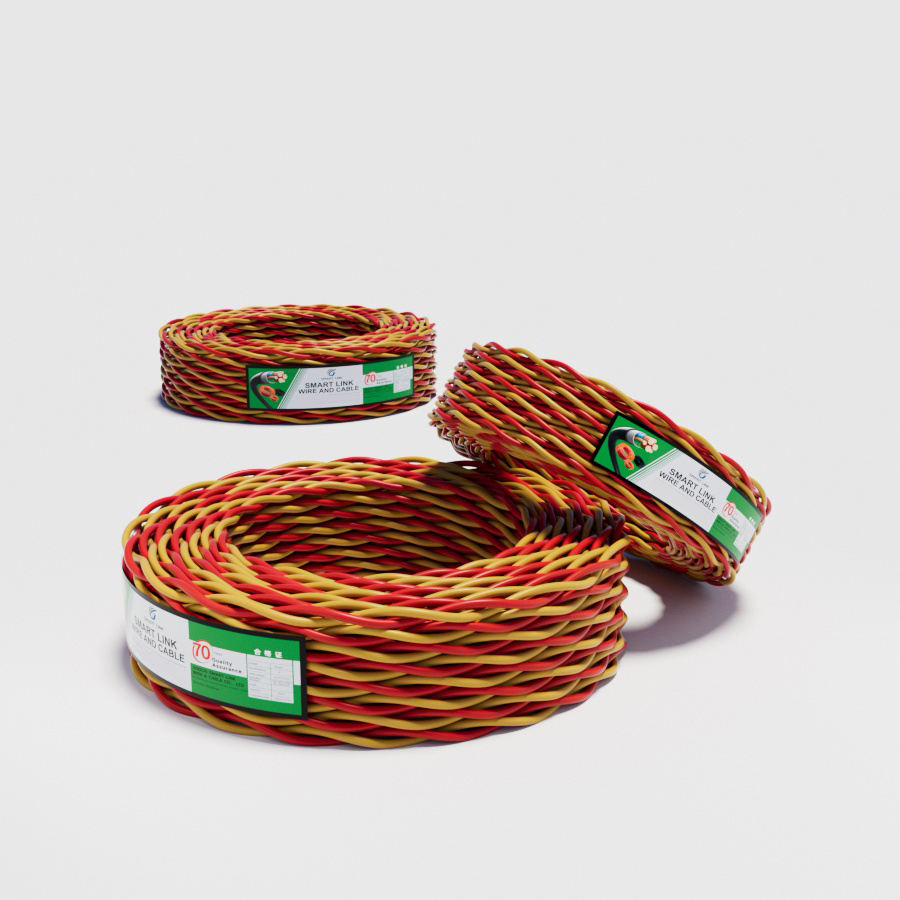

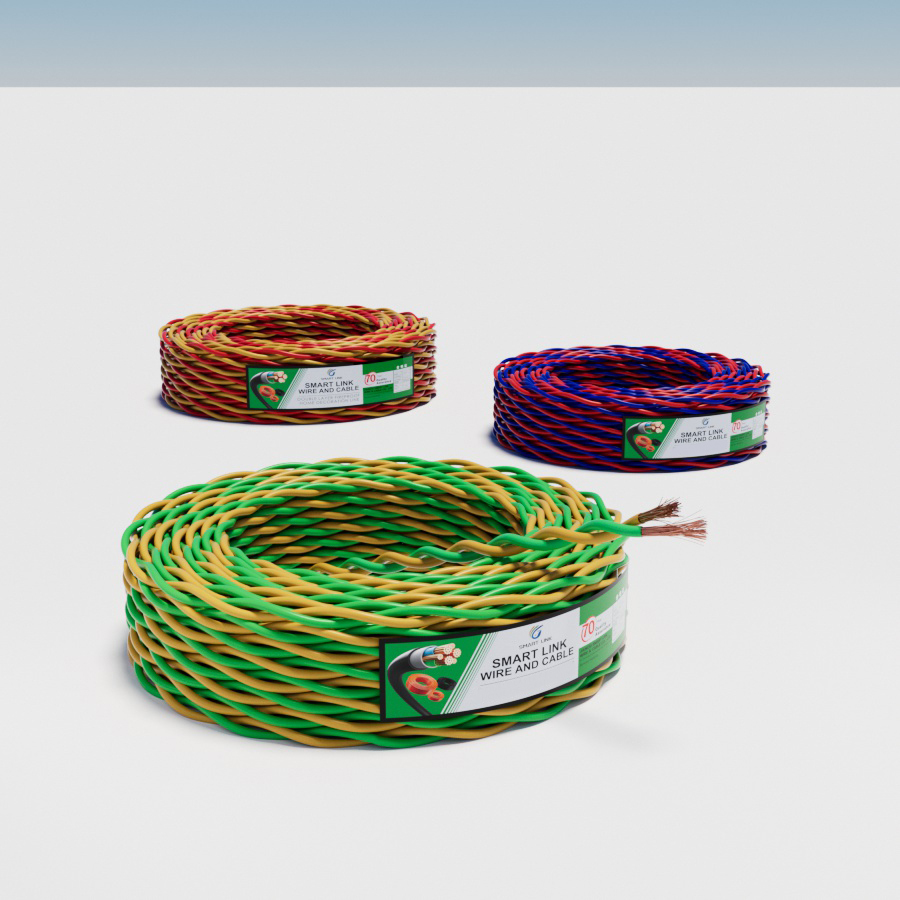

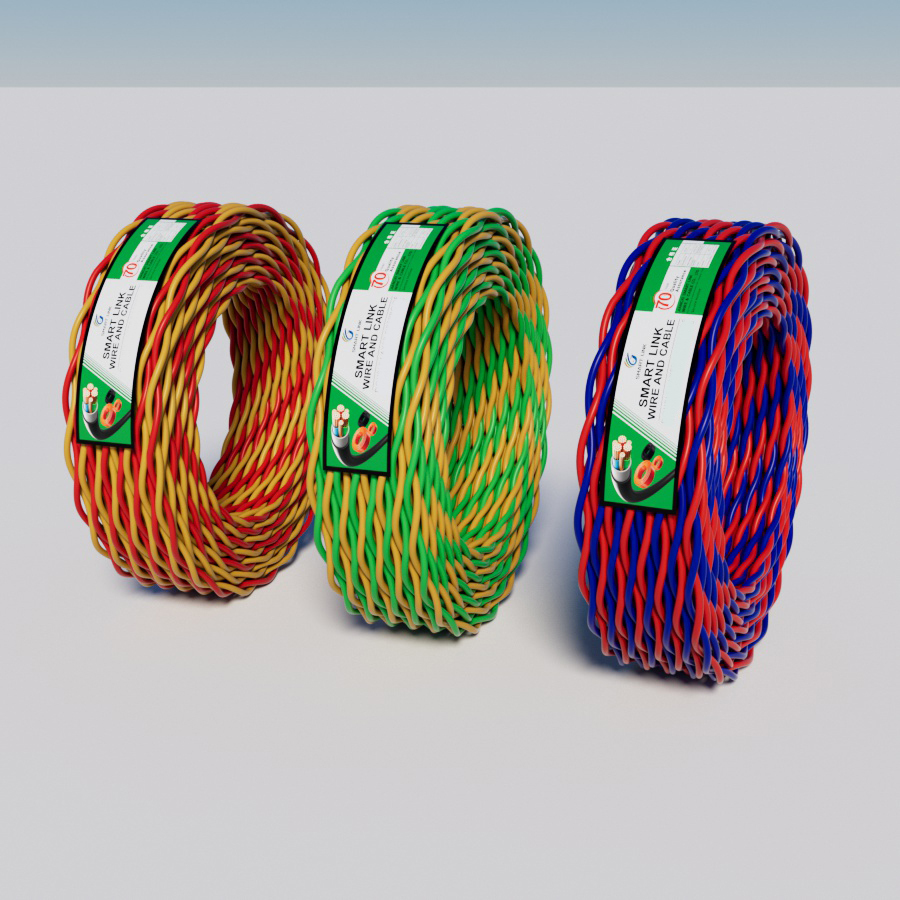

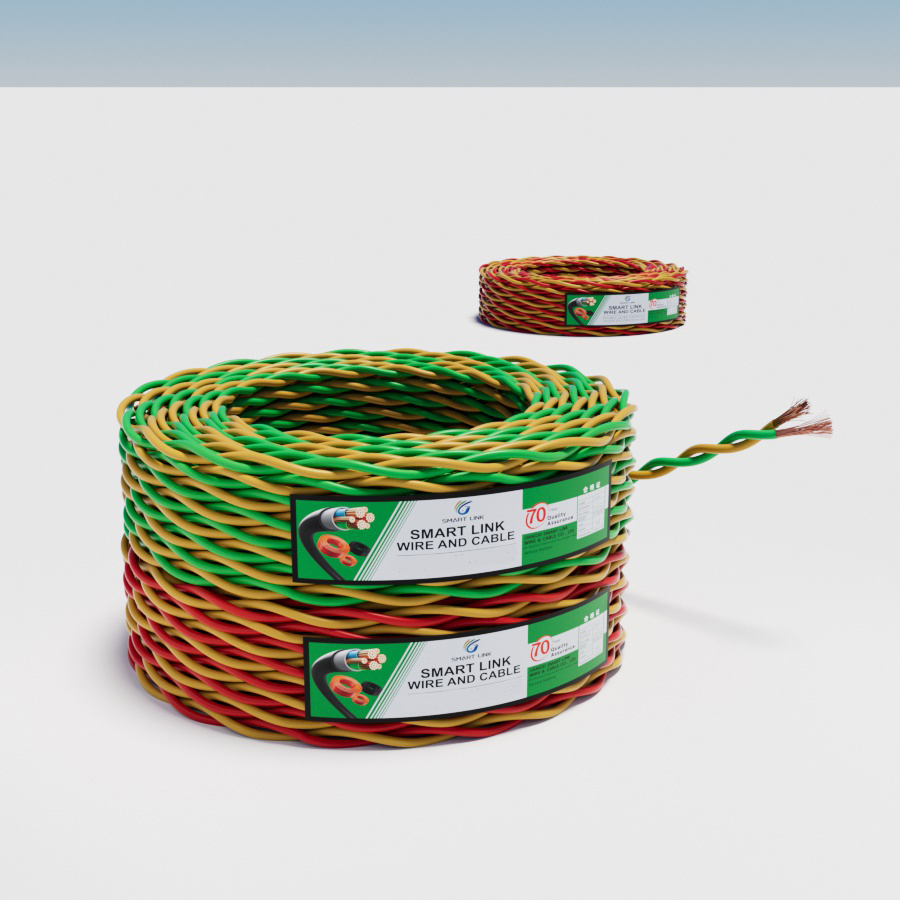

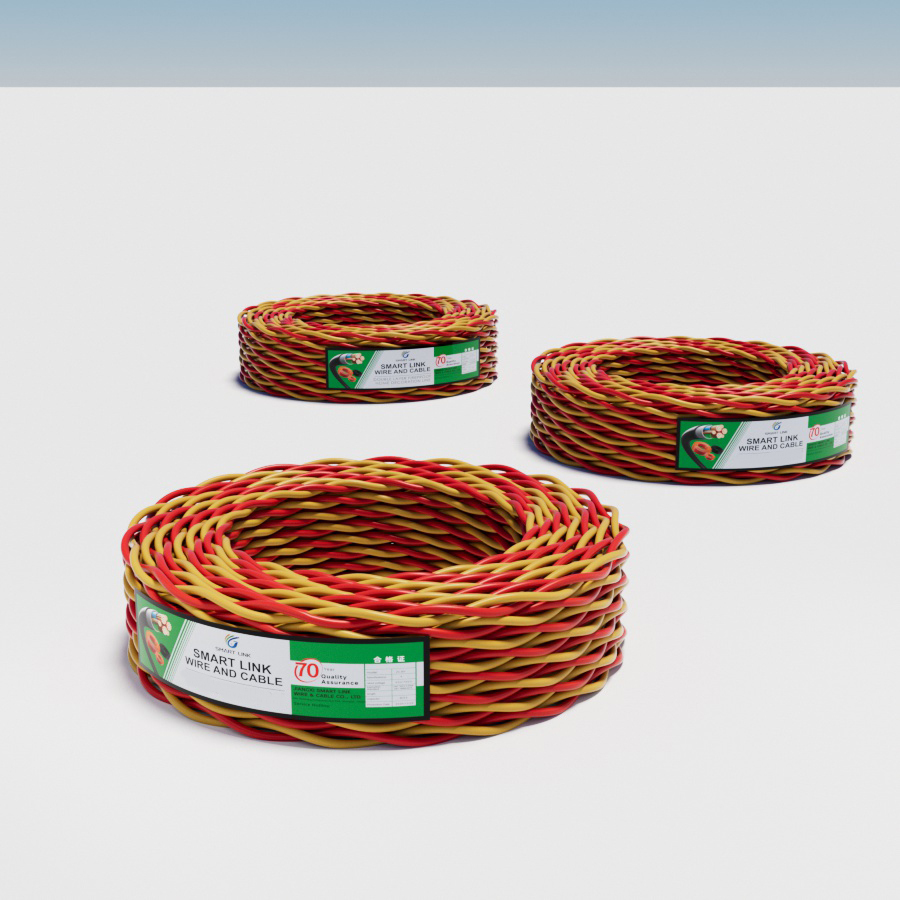

Name: RVS
Brand: Jiangxi Smart Link Wire And Cable Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

Features

The core characteristics of RVS control cable (copper core polyvinyl chloride insulated twisted flexible wire, commonly known as "flower wire") focus on "flexible anti-interference+safety and durability+adaptability to multiple factors", making it a practical choice for low-voltage connection and signal transmission. It uses two multi strand thin copper wires twisted together as conductors, with extremely strong flexibility and small bending radius. It can easily adapt to threading, narrow space wiring, and frequent bending scenarios, and is easy to construct without damage. The conductor is high-purity Oxygen free Copper, with excellent conductivity and low power loss. It is equipped with PVC insulation layer, which is wear-resistant, anti-aging and reliable. The rated voltage of 300/300V is suitable for low-voltage scenarios, and the normal operating temperature can reach 70 ℃. The unique twisted pair structure can effectively reduce electromagnetic interference, ensure stable signal transmission, and also derive safety models such as flame retardant (ZR-RVS). The core wire color identification is clear (such as red and blue, red and white, etc.), and the specifications are rich, balancing safety and economy.

Applications

The application of RVS control cables focuses on the requirements of low-voltage signal transmission and flexible wiring. They are used for detectors and manual alarm button lines in fire automatic alarm systems, as well as for audio signal transmission in broadcasting and sound systems, signal connection for building intercoms and security monitoring. They can also be used for connection and wiring of lighting fixtures, small appliances, and instruments in homes and commercial places, meeting the low-voltage signal and power supply connection needs of fire protection, audio, security, and daily civil and commercial use.

Specification Parameters

Model	Insulation	Core Number	Cross Section	Conductor Material	Insulation Color
RVS【RB 2×1】100Meter	0.8mm	2	1mm²	Oxygen-free Copper	Red/Black
RVS【RY 2×1】100Meter	0.8mm	2	1mm²	Oxygen-free Copper	Red/White
RVS【RB 2×1】100Meter	0.8mm	2	1mm²	Oxygen-free Copper	Red/Blue
RVS【RG 2×1】100Meter	0.8mm	2	1mm²	Oxygen-free Copper	Red/Green
RVS【RW 2×1】100Meter	0.8mm	2	1mm²	Oxygen-free Copper	Red/White
RVS【YG 2×1】100Meter	0.8mm	2	1mm²	Oxygen-free Copper	Yellow/Green
RVS【RB 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Red/Black
RVS【RB 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Red/Blue
RVS【RB 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Red/Blue
RVS【RG 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Red/Green
RVS【YG 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Yellow/Green
RVS【EW 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Black/White
RVS【RW 2×1.5mm²】100Meter	0.8mm	2	1.5mm²	Oxygen-free Copper	Red/White
RVS【RB 2×2.5mm²】100Meter	0.8mm	2	2.5mm²	Oxygen-free Copper	Red/Black
RVS【RB 2×2.5mm²】100Meter	0.8mm	2	2.5mm²	Oxygen-free Copper	Red/Yellow
RVS【RB 2×2.5mm²】100Meter	0.8mm	2	2.5mm²	Oxygen-free Copper	Red/Blue
RVS【RG 2×2.5mm²】100Meter	0.8mm	2	2.5mm²	Oxygen-free Copper	Red/Green
RVS【YG 2×2.5mm²】100Meter	0.8mm	2	2.5mm²	Oxygen-free Copper	Yellow/Green
RVS【RW 2×2.5mm²】100Meter	0.8mm	2	2.5mm²	Oxygen-free Copper	Red/White
