Name: BYJ
Brand: Jiangxi Smart Link Wire And Cable Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

Features

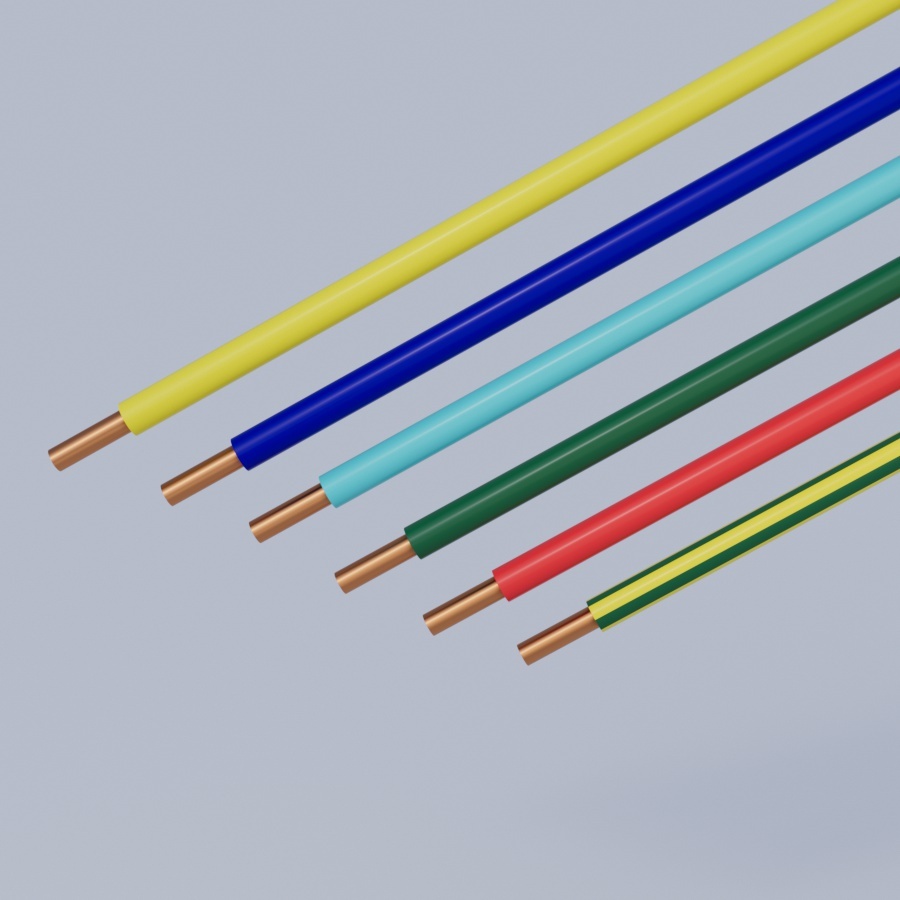

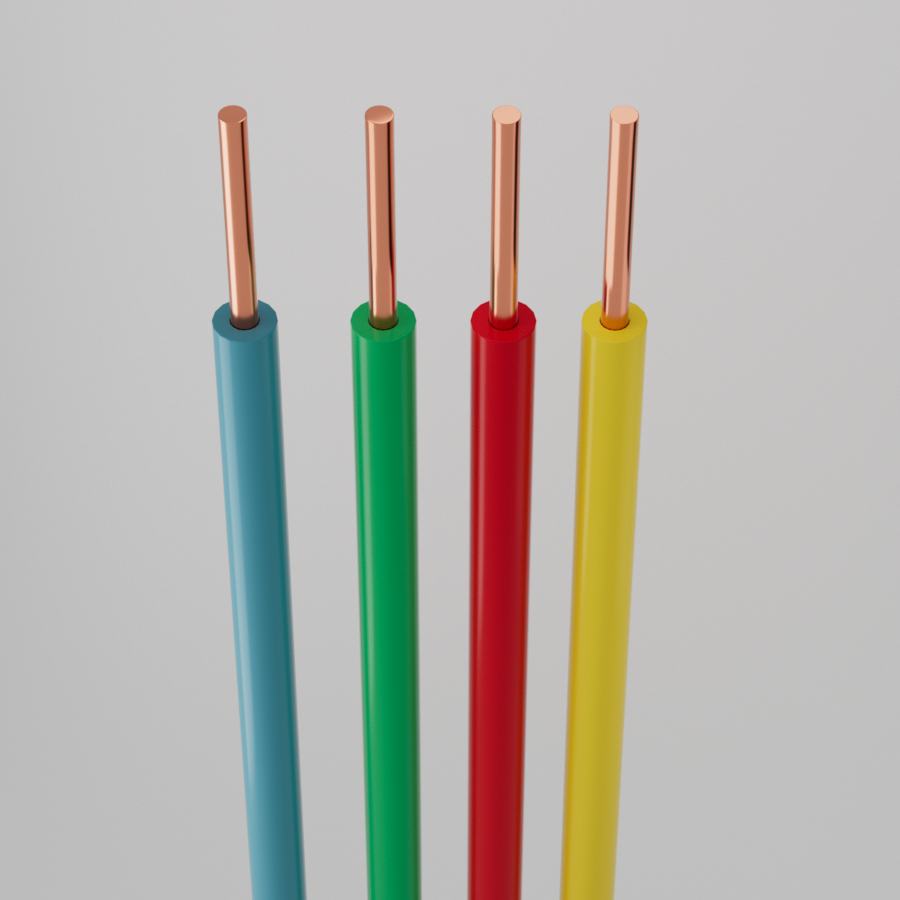

BYJ power cables (copper core cross-linked polyethylene insulated cloth wires) focus on the core characteristics of "safety and environmental protection+high temperature resistance+low loss", and are the preferred choice for building power distribution. It adopts high-purity oxygen free copper conductor with excellent conductivity and low power transmission loss. It is equipped with cross-linked polyethylene (XLPE) insulation layer, which does not contain halogens. There are no toxic gases or smoke during combustion, and it has high environmental safety. The insulation layer has outstanding temperature resistance performance, with a long-term working temperature of up to 90 ℃. It has strong aging resistance and cracking resistance, longer service life, and is suitable for low-voltage distribution scenarios with a rated voltage of 450/750V. The wire structure is regular, the mechanical strength is solid, and it supports various laying methods such as threading and concealed laying. The specifications cover common wire diameters, combining practicality and safety, and suitable for distribution scenarios that require environmental protection and heat resistance.

Applications

The application scenarios of BYJ power cables focus on low-voltage and environmentally friendly power distribution in buildings. They are used for concealed installation on walls, wiring and sockets in ceilings, and lighting power supply lines in residential and office buildings. They are also suitable for power distribution systems in densely populated places such as hospitals and schools. They can also be applied to power and lighting main lines in shopping malls and hotels to meet the low-voltage power supply needs of civil and commercial buildings that require environmental protection and high temperature resistance.

Specification Parameters

Model	Cores	Insulation Color	Cross Section	Insulation Thickness	Length
WDZAN-BYJ 1*1.5	1	Red, white, green, black, blue	1.5mm²	0.7mm	100 Meter/Roll
WDZAN-BYJ 1*2.5	1	Red, white, green, black, blue	2.5mm²	0.8mm	100 Meter/Roll
WDZAN-BYJ 1*4	1	Red, white, green, black, blue	4mm²	0.8mm	100 Meter/Roll
WDZAN-BYJ 1*6	1	Red, white, green, black, blue	6mm²	0.8mm	100 Meter/Roll
WDZAN-BYJ 1*10	1	Red, white, green, black, blue	10mm²	0.8mm	100 Meter/Roll
