Name: BYJ
Brand: Jiangxi Smart Link Wire And Cable Co., Ltd.
Availability: InStock
Rating: 5 (1 reviews)

Description

Features

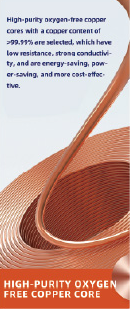

BYJ Wire (Copper-Core XLPE Insulated Wire) Key Features: Focusing on "Safety & Environmental Protection + High-Performance Adapt- ability", it is the preferred wiring solution for high-demand scenarios. Featuring high-purity oxygen-free copper conductors paired with cross-linked polyethylene (XLPE) insulation, it operates at rated voltages of 450/750V with long-term working temperatures up to 90°C. The wire demonstrates excellent temperature resistance and aging performance, minimal power transmission loss, high insulation resistance, and stable electrical performance. The multi-strand twisted copper wire structure offers superior flexibility and small bending radius, facilitating easy conduit installation and complex routing while minimizing insulation damage. Core advantages include environ- mental safety: mainstream variants (WDZ-BYJ, WDN-BYJ) feature low-smoke and halogen-free properties, producing minimal smoke and
non-toxic corrosive gases during combustion. They also provide flame-retardant or fire-resistant capabilities. The insulation layer exhibits wear resistance, chemical corrosion resistance, and high mechanical strength. With diverse specifications, it meets low-voltage power supply requirements for residential, commercial, and densely populated areas, balancing practicality with safety.

Applications

BYJ's low-voltage wiring solutions are designed for safety and environmental protection in critical applications. They are suitable for residential and villa installations, including lighting, power outlets, and appliance wiring. These solutions also serve commercial spaces like office buildings, shopping malls, and hotels, as well as public facilities such as schools, hospitals, and subways. Additionally, they meet the needs of high-performance electrical environments like data centers and precision equipment workshops, ensuring compliance with safety standards, low-smoke emission, and halogen-free requirements for both residential, commercial, and public low-voltage power supply.

Specification Parameters

Model	Core Number	Insulation Color	Norm. Cross Section	Insulation Thickness	Length
WDZAN-BYJ 1*1.5	1	Red, Yellow, Blue, Green, Black, White, Two Colors	1.5mm²	0.7mm	100meter/roll
WDZAN-BYJ 1*2.5	1	Red, Yellow, Blue, Green, Black, White, Two Colors	2.5mm²	0.8mm	100meter/roll
WDZAN-BYJ 1*4	1	Red, Yellow, Blue, Green, Black, White, Two Colors	4mm²	0.8mm	100meter/roll
WDZAN-BYJ 1*6	1	Red, Yellow, Blue, Green, Black, White, Two Colors	6mm²	0.8mm	100meter/roll
WDZAN-BYJ 1*10	1	Red, Yellow, Blue, Green, Black, White, Two Colors	10mm²	0.8mm	100meter/roll
